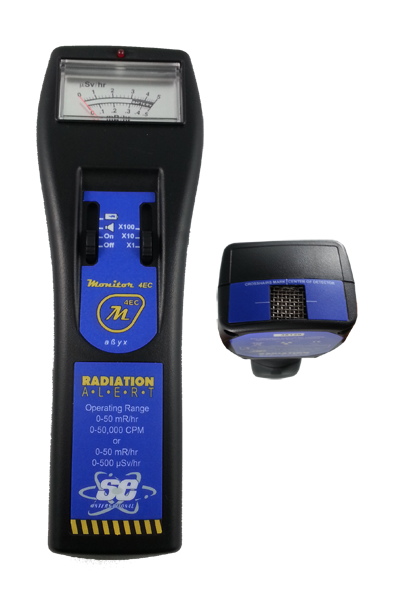

The M4EC is a compact, ergonomic, general purpose survey meter capable of detecting alpha, beta, gamma, and x-rays over 3 selectable ranges. A red count light flashes and a beep sounds with each event detected. The Monitor 4EC offers a more linear reading for gamma and x-rays (above 40 keV).
Detector
Thin window Geiger-Muller
| Sensitivity |
Detects alpha down to 2.5 MeV; typical detection efficiency at 3.6 MeV is greater than 80%. Detects gamma and x-rays down to 10 keV typical through the window (non-compensated), 40 keV through the sidewall. |
|---|---|
| Operating Range |
0-.5, 0-5, 0-50 mR/hr 0-500, 0-5,000, 0-50,000 CPM or 0-5, 0-50, 0-500 μSv/hr |
| Accuracy |
Typically ±15% of reading (Cs137) |
| Detector Type |
Halogen-quenched GM tube, energy compensated sidewall 2mm tin filter. Thin mica window 1.5-2.0 mg/cm2 thick. Effective diameter of window is 9.1 mm (.36 in.). |
| Display |
Analog Meter holds full scale in fields as high as 100X maximum reading. CPM & mR/hr scale. Optional SI Scale Meter Available |
| Energy Response |
Energy compensated |
| Finish |
Pastic - Black |
| Dimensions |
209 x 71 x 50 mm (8.2 x 2.8 x 1.9 in.) |
| Environmental |
-20° to 55°C (-4° to 131°F) |
| Weight |
224 g (7.9 oz) |
