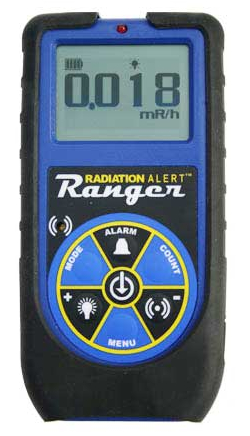

The Ranger is a small, handheld, microprocessor-based instrument which offers excellent sensitivity to low levels of alpha, beta, gamma, and x-rays. The digital readout is displayed with a red count light and a beeper sounds with each count detected. Other features include an adjustable timer, external calibration controls and adjustable alert.
The Ranger offers maximum performance in a lightweight, rugged solution for surveying at the facility or in the field. The Ranger has been designed for industrial environments, but it still has all the features you’ve come to love in the lab. The Ranger is a small, handheld, microprocessor-based instrument which offers excellent sensitivity to low levels of alpha, beta, gamma, and x-rays and has built in efficiencies for common isotopes to calculate activity in Bq and DPM. It has a backlit digital display, a red count light, and a beeper that sounds with each count detected. Other features include selectable alert levels, an adjustable timer, and an optional wipe test plate for swipes. Internal memory and the free Observer USB Software allow you to download your data, set computer alarms, and calibrate your instrument!
Detector
Thin window Geiger-Muller
| Sensitivity | Detects Alpha down to 2 MeV.Detects Beta down to .16 MeV; typical detection efficiency at 1 MeV is approx. 25%. Detects Gamma down to 10 KeV through the end window. 3340 CPM/mR/hr (Cs137). Smallest detectable level for I125 is .02 µCi at contact. | ||||||
|---|---|---|---|---|---|---|---|
| Operating Range |
|
||||||
| Accuracy | mR/hr ±10% typical (NIST), ±15% max - 0 to 100 µSv/hr ±10% typical (NIST), ±15% max - .01 - 1000 CPM ±10% typical (NIST), ±15% max - 0 to 350,000 (Referenced to Cs-137) |
||||||
| Built In Efficiencies | Sulfur (35S), Strontium (90Sr/y), Cesium (137Cs), Phosphorus (32P), Carbon (14C), Iodine (131I), Cobalt (60Co), and Alpha | ||||||
| Detector Type |
Internal Halogen-quenched, uncompensated GM tube with thin mica window, 1.4-2.0 mg/cm2 areal density. Effective diameter of window is 45 mm (1.75 in.). Radiation symbol on front label marks the center of the detector. | ||||||
| Display | 4 digit liquid crystal display with indicators | ||||||
| Energy Response | energy dependant | ||||||
| Finish | Pastic - Black | ||||||
| Dimensions | 150 x 80 x 30 mm (5.9 x 3.1 x 1.2 in.) | ||||||
| Environmental | -10ºC to 50ºC (14ºF to 122ºF) | ||||||
| Weight | 10.3 oz. | ||||||
| Power | 2 AA BAtteries | ||||||
