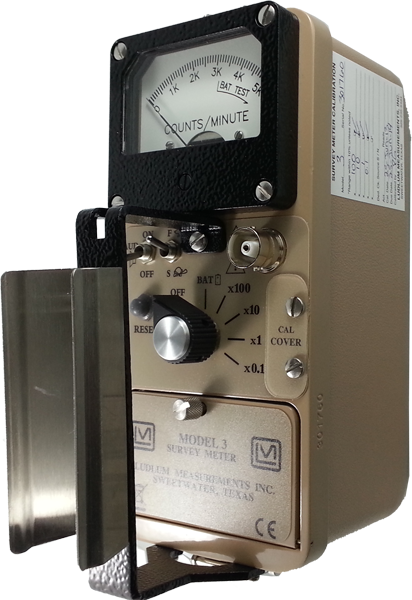

The Ludlum Model 3 - The universal survey meter.
The Ludlum Model 3 can be customized to suit any application. Universal meter body can be paired with any Ludlum probe. This meter can only be calibrated to one probe at a time.
The aluminum cast instrument housing with its separate battery compartment and accompanying metal handle offer an industrial robustness and quality that promote long-lasting protection and instrument life. The front-panel controls include a rotary switch for selecting the four-decade range, instrument shut-off, and battery test, an audio on/off switch, a fast/slow response switch, and a count reset button.
A one meter (39 in.) straight type detector cable with "C" style connector is included in the price of the instrument.
Meter Body:
| Indicated Use | Dependant on probe selection |
|---|---|
| Linearity | Reading within 10% of true value with detector connected |
| High Voltage | Adjustable from 400-1500 Vdc |
| Threshold | fixed at 40 mV to 10 mV |
| Meter | 6.4 cm (2.5 in.) arc, 1 mA analog type |
| Controls |
|
| Construction | cast and drawn aluminum with beige powder coat |
| Temperature Range | -20 to 50 °C (-4 to 122 °F), may be certified for operation from -40 to 65 °C (-40 to 150 °F) |
| Power | Two "D" Cell Batteries |
| Battery Life | Typically greater than 2000 hours with alkaline batteries |
| Size | 16.5 x 8.9 x 21.6 cm (6.5 x 3.5 x 8.5 in.) (H x W x L), including handle |
