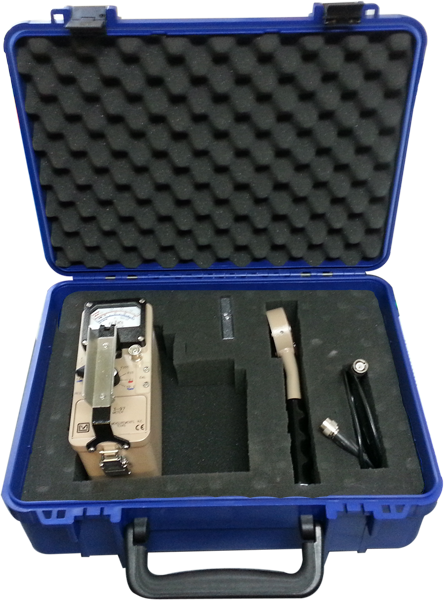

The 3-97 NORM meter, the classic NORM measuring tool with hard resin carrying case and license exempt check source.
The Ludlum 3-97 NORM meter is excellent for measuring NORM in all kinds of processing facilities. This istrument is highly sensitive to Alpha, Beta and Gamma radiations. It has been modified for the easiest possible operator usage. Color coding and labelling to identify proper settings for each detector. The analog meter dial allows for a more natural response.
Meter Body:
| Indicated Use | NORM Alpha, Beta, Gamma Survey |
|---|---|
| Pancake/Scintillator Switchable | Internal External Switch |
| Internal Scintillator | 1" NaI (Sodium Iodide) |
| Sensitivity | 175 CPM/uR/hr |
| Multipliers | x0.1, x1, x10, x100 |
| Range | 0-50uSv/hr |
| Linearity | reading within +/- 10% of true value with detector connected |
| Response | Fast (4 Seconds) Slow (22 Seconds) |
| Power | 2 D Cell Batteries |
| Batery life | 600 hours |
| Temperature Range | -20 to 50 degrees celcius |
| Size | 24.1 x 8.9 x 21.6 cm (9.5 x 3.5 x 8.5 in.) ( H x W x L), with handle |
| Weight | 2kg with batteries and detector |
Pancake Probe:
| Energy Response | Energy Dependant |
|---|---|
| Operating Voltage | 900vdc |
| Window Density | 1.7 mg/cm3 mica |
| Dead Time | 80 uS |
| Sensitivity (Cs-137) | 3300 CMP/mR/hr |
| Sensitive Area | 15 cm2 |
| Environmental | -20°F (-28°C) - 140°F (60°C) | 5-95% RH |
| Efficiency | 5% for 14C; 22% for 90Sr/90Y; 19% for 99Tc; 32% for 32P; 15% for 239Pu, ≤ 1% for 99mTc; 0.2% for 125I |
| Dimensions | 4.6 x 6.9 x 27.2 cm (1.8 x 2.7 x 10.7 in.) (H x W x L) |
| Weight | 1lb. (.5Kilos) |
| Construction | Cast Aluminum & Powder Coat |
