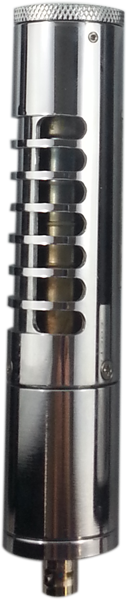

The original "Hot Dog" probe. This detector is an excellent application for specific gamma/beta detection. With a rugged chrome plated brass housing and easy slide internal beta shield, the GP-1010 is the optimal detector for gamma and beta monitoring.
Detector
Energy compensated GM
| GENERAL | Intended for general gamma (dose) measurements |
|---|---|
| Compatibility | ALL WB Johnson Instruments (others on request) |
| Operating Voltage | 900 vdc |
| Wall Thickness | 40 mg/cm2 |
| Range | 0-2,000 uSv/hr |
| CPM -mr/hr(Cs-137) | 1,200 |
| Energy Response | 60keV - 2 MeV gamma |
| Sensitive Area | 1.1" x .308" |
| Finish | Chrome plated brass |
| Dimensions | 1.25" dia x 7" L |
| Environmental | -20° F[-28° C]-140° F[60° C] | 5-95% RH |
| Weight | 8oz |
