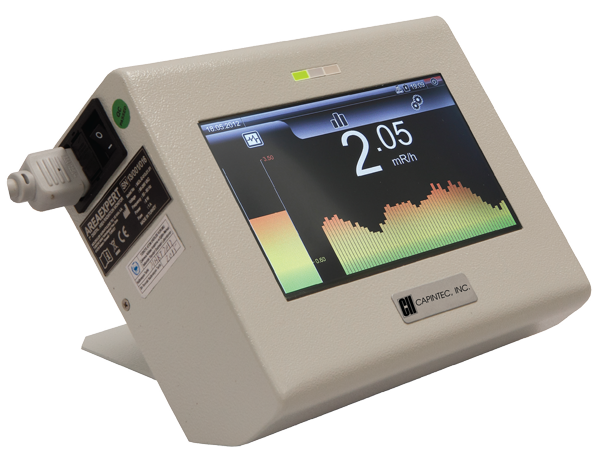

Area Expert - Alara Consultants Inc.

Area Expert ^Featured

Displays real-time information from AreaExpert: Activity readings, Alarm status, Cumulative alarm status
Data Connection: Ethernet
Software platform: Java
Units: mR/hr; uSv/hr

Detector Type: Energy Compensated GM
Display Type: Color LCD Touch Screen, Block LED indicator during operation
Units: Improved counting system in units µR/hr-R/hr, µSv/hr
Sensitivity: Depends on detector type: 0.013 mR/hr to 1000 mR/hr with 71210 detector
Response Time: 1 to 3 s for the 90% of the actual value
Alarm: Programmable alarm levels
Safe Area (Green LED): Indicates the effective area is safe
Low Alarm (Yellow LED): Indicates the low alarm in the effective area
High Alarm (Red LED): Indicates the high alarm in the effective area
Battery Life: 2 hours in no alarm conditions
Battery Indicator: Low battery indicator on blinking Green LED
Battery Charger: Trickle charging system and battery over discharge protection increases battery life
Calibration: Calibration via touch screen or remotely from a PC
Remote Management: PC remote management
Monitoring: Remote PC monitoring
Data Output: Ethernet, USB
High Voltage: 550 VDC
Power: 85-265 VAC 50-60 Hz, Battery powered up to 2 hr with no alarm conditions
External Device Switch: Switching ON/OFF of external device on alarm condition
Working Environment: 0 to + 60C, 0 to 90%RH
Mount: Wall mount type
Item Dimensions: 8.31" x 6.63" x 3.27" (211.2 x 168.5 x 83 mm)
Item Weight: 3.75 lbs. (1.7 kg)

5250-0162

AreaExpert
