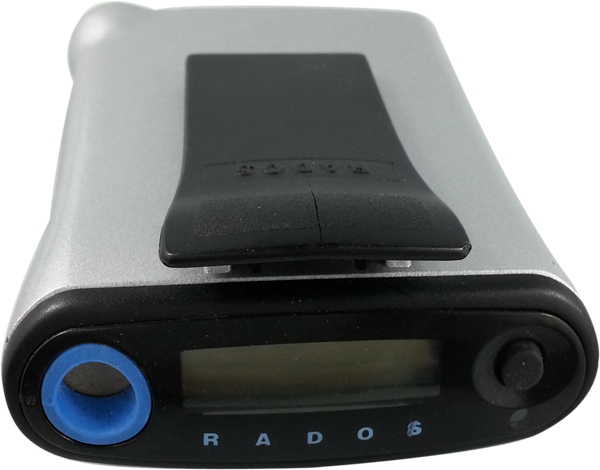

The RADOS RAD-60 Personal Alarm Dosimeter is a precise and reliable instrument for ensuring the personal safety of the user. Ideally, the RAD-60 is used in everyday radiation monitoring, in stand-alone conditions. If your needs grow for a more sophisticated system, the versatile RAD-60 can also be integrated into an Access Control System. The RAD-60 can be switched into System Mode, for the purpose of tracking Personnel Dose records and generating compliance reports.
The design includes state-of-the-art technology with built in memory for retrieving dose, even during power-down. It eliminates outside interference from shock and RF. The RAD-60 is easily programmed by the user, has a digital display, and operates with a single AAA alkaline battery.
With the push of a button, you can turn the unit on/off, change the digital display to read dose or dose rate, select from several dose and dose rate alarm levels, turn the chirp function on/off, reset the integrated dose, and perform battery tests. The large digital display gives instant dose or dose rate readings and the audible alarm is loud (>85dba)
Specifications:
| Indicated Use | Dosimetry |
|---|---|
| Display Range |
.001 mSv/h to 9.99 Sv/h |
| Energy Range |
60 keV to 3 MeV |
| Alarms | • integrated dose • dose rate • dose overflow • dose rate overflow at 3 Sv/h or 300 rem/h • low battery 1 and 2 • defect |
| Temperature Range | -20 to 50 °C |
| Power | One 'AAA' alkaline cell |
| Battery Life | Typically 1800 hours with alkaline batteries |
| Size | 78 x 67 x 22 mm |
