The Captus® 4000e is a comprehensive Nuclear Medicine Measurement System, with specific software modules for thyroid uptake, bioassay, wipe tests, automated quality assurance tests, lab tests, and isotope library. The system includes a fully functional 1024 channel MCA with auto and manual calibration. Timed activity mode features a programmable repetitive timed measurement program.

Improved menu driven workflow and large 20 inch color touch screen streamlines user interface.

The fully integrated DICOM interface communicates directly with hospital information systems, and can transfer patient, wipe test, and QC data.

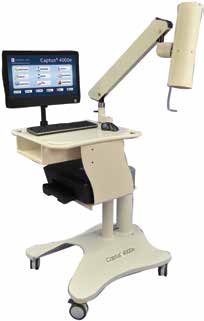

New and improved stand provides ergonomically adjustable monitor and easy to position articulating collimator arm. Four sided comfortable handle grips and swivel wheels ensure easy mobility. PC can be attached to either right or left side to optimize workspace.

NEW FEATURES

• New and improved color touch screen user interface
• Large 20 inch All-in-One Touch Screen Computer
• Fully integrated DICOM interface for patient data, QC and wipe tests
• Custom Protocol Capabilities
• Ergonomically Designed Mobile Stand
• Articulating Arm with Wide Range of Motion
• Medical Grade Corian Countertop with document storage shelf
• Secure Neck Phantom Storage Location
• Source holder for reproducible QC positioning

SOFTWARE FEATURES

• Diagnostics and Tests: Fully automated Quality Assurance Section includes energy calibration, zero adjust, gain adjust, detector efficiency, detector resolution, chi-square, constancy, and MDA; Manual calibration available in MCA module.
• Thyroid Uptake: Provides four predefined protocols; Supports both capsule and liquid dose formats; Dose may be pre-counted before patient assignment; Predose measurement option; Normal range option
• Wipe Tests: Setup for multiple groupings; Isotope identification available; Spectrum is displayed for each wipe; Activity exceeding trigger levels flagged in red
• MCA: 1024 channels; Automated and manual calibration selection; Preset or user defined ROI; Count set by real time, live time, or total peak counts; Timed activity feature enables predefined continual repetitive measurements
• DICOM Interface (Optional): Fully integrated interface iwth Captus® 4000e; Retrieve patient data from worklist; Upload patient, wipe test, and QA reports
• Bioassay: Monitors Staff for I 123, I 125, and I 131 exposure; User defined action levels for each isotope; Individual and summary reports available
• Reports: Reports include full spectrum graphics; Thyroid report includes time vs. uptake value graph; Data is archived; Reports can be printed or saved as a .pdf file

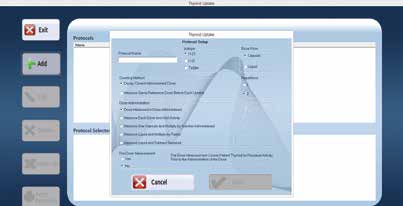

• Custom Protocol: Create Custom Measurement Sequence; Customizable Reports

HARDWARE SPECIFICATIONS

• Thyroid Uptake Stand: Ergonomically designed floor stand; Medical grade Corian countertop with shelf; Adjustable height PC stand, left or right side mounting; Articulating arm with 34” vertical range of travel and 220° collimator rotation; Protective cable management system; Neck phantom storage location; Fully protected internally routed cables; (4) Heavy duty locking casters that swivel 360°; Isolation transformer for patient and user safety; QA source holder for reproducible geometry

• Computer: 20” All in One Touch Screen Flat Panel Computer; Windows 8 Platform
• Printer: Color Ink Jet printer
• Collimator: 2" dia. 14 pin NaI (TI) detector iwth 1.55" deep and .66"
• diameter well; Flat field collimator meets ANSI N44.3, IAEA; Precision measurement and alignment rod, which measures distance directly to thyroid
• Well Counter: 2" dia. NaI (TI) well detector with 1.55" deep and .66" diameter well; 1” lead well shield with brass liner; (Optional 2” shield available)
• Multichannel Analyzer Interface PC Board: Two detector input; 1024 Channels; Maximum count rate: 100,000 cps; ROIs automatic or manual; Differential Linearity <2% over the top 98% of channels; Integral Linearity <1% over the top 98% of channels; Presets live time, real time, total counts; Automatic peak finding; Software controlled lower level discriminator
• Thyroid Uptake Stand Dimensions: Closed Storage Position: 56" h x 28" w x 32" d (142 x 71 x 81 cm); Arm able to extend 36" (91 cm) horizontally beyond shelf; Vertical travel 25" to 63" (64 to 160 cm); Weight: Uptake System 340 lbs (154 kg); Weight with 1" Shielded Well: 410 lbs (186 kg); Weight with 2" Shielded Well: 540 lbs (245 kg)
• Power: Line Voltage; 120 VAC, 60 Hz, 2.6 AMP; 230 VAC, 50 Hz, 1.1 AMP; Isolation Transformer with hospital grade cord and plug

ITEM NUMBERS

Captus® 4000e Thyroid Uptake System...................................... 5430-30151

Captus® 4000e Thyroid Uptake System with Well .................... 5430-30152

Captus® 4000e Well Counting System ........................................ 5430-30153

Captus® 4000e DICOM Interface ............................................... 5430-00007

OPTIONAL ACCESSORIES

Well Detector (2” Shield)................................................................. 5430-0069

Neck Phantom .................................................................................. 5230-0038

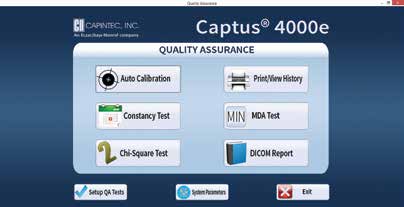

AUTOMATED QUALITY ASSURANCE SOFTWARE Provides rapid, automatic completion of daily and quarterly quality assurance protocols

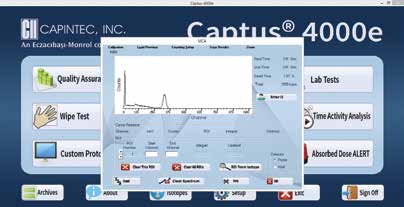

VERSATILE MULTICHANNEL ANALYZER The 1024 keV multichannel analyzer allows measurements of energies up to 2 meV. Adjustable ROI’s for reproducible counting parameters.

CAPTUS® 4000e THYROID UPTAKE SYSTEM REPORTS

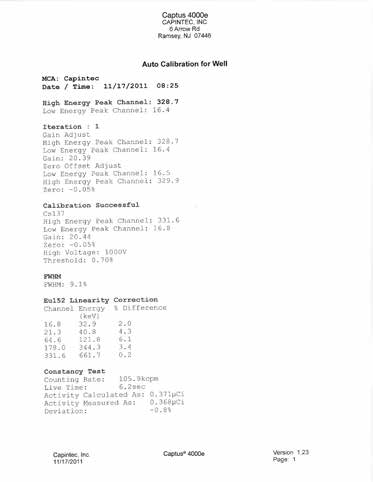

AUTO CALIBRATION FOR WELL   Automated calibration tests include: • high voltage • zero offset • automatic gain adjustments • linearity correction • constancy test

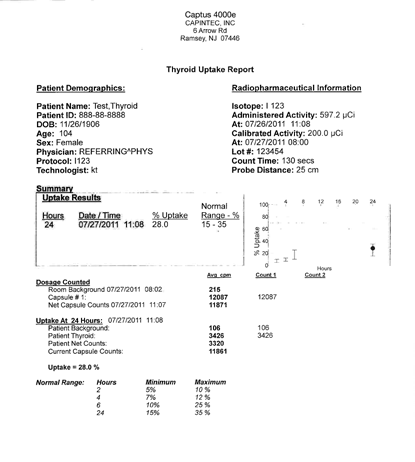

	THYROID UPTAKE REPORT Patient demographics, isotope data, count parameters and user normals clearly displayed for rapid evaluation and interpretation.
WIPE HISTORY User-defined wipe locations and trigger levels. Pre-defined wipe groups for expedited wipe counts. 1024 channel MCA provides automatic peak and isotope identification. Flagged wipe data for any count that exceeds trigger level.

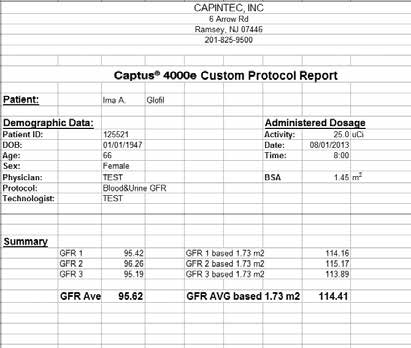

CAPTUS® THYROID UPTAKE SYSTEM CUSTOM PROTOCOL

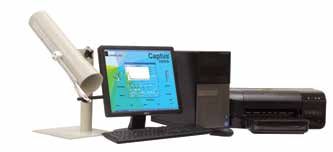

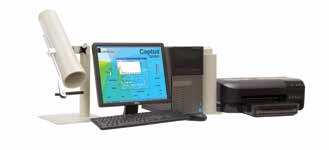

CAPTUS® 4000e SYSTEM CONFIGURATIONS
