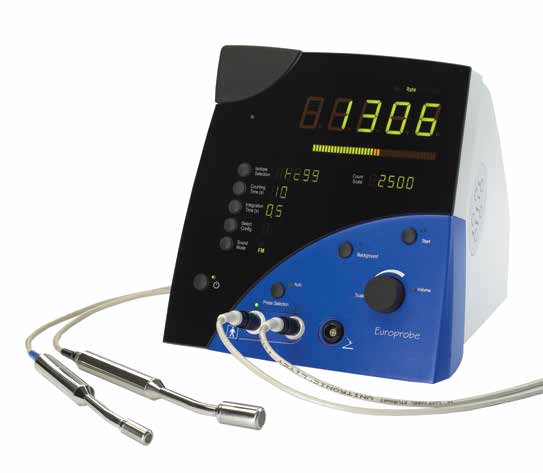

The EuroProbe3 meets the demanding specifications of radioguided surgical procedures to identify increased radionuclide uptake in a variety of clinical and surgical settings.
Multiple detector options, size and configurations have been designed to meet specific surgical requirements and assure the versatility to perform optimal radioguided surgical procedures.
• Wireless
• Blue Tooth probe:
• 100 keV to 1 MeV (Tc-99m, In-111, I-131, F-18)
• Collimator integrated in probe for low energy isotopes
• Detector crystal: Csl
• Wired
• Large CsI probe:
• 110keV to 1 MeV
• Straight or angled probes
• High sensitivity straight or angled probes available
• Small CdTe probe:
• 20 keV to 170 keV
• Straight, angled, ROLL or endoscopic probes
• Excellent spatial resolution
DETECTOR FEATURES
• High efficiency solid state scintillation detectors operating at room temperature.
• High sensitivity and target to background ratio.
• Can be sterilized with Ethylene Oxide gas.
• Preferred ergonomic angled design.
• Integrated tungsten collimator.
• Additional detachable collimator is available.
• Direct read-out (digital and bar-graph type) through large, easy to read display.
• Pre-set or user definable energy window setting for ultimate flexibility.
• Choice of two types of audible signals proportional to counting rate.
• Both probes are standard.
• Easily switch between probes.
• Store up to 9 custom configurations.
• Built in background subtraction.
• Choice of bent or straight probes.
• Automatic probe identification
• Optional foot switch.
EUROPROBE3 SPECIFICATIONS
• Operating Power: 115VAC, F=50Hz, I= 0.5A or 230VAC, F=50HZ, I= 0.250A
• Power Consumption: Max. 15 watts
• Maximum Counting Rate: 15,000 cps/s
• Operating Temperature Range: +15°C to +40°C
ITEM MEASUREMENTS
• Dimensions: 9.6" h x 9.1" w x 10.6" d (245 x 233 x 270 mm)
• Weight: 4.4 lbs. (2 kg)
ITEM NUMBERS
EuroProbe3 Surgical Probe System................................................5250-0111
includes CsI & CdTe (bent probes)
EuroProbe3 with Bluetooth Probe System.................................... 5250-0152
includes CsI (bent wireless probe)
ADDITIONAL PROBES
EuroProbe3 Surgical Probe, (CdTe), Straight .............................. 5250-0117
EuroProbe3 Surgical Probe, Cs(I), Bent ....................................... 5250-0118
EuroProbe3 Surgical Probe, Cs(II), Straight................................ 5250-0119
EuroProbe3 Surgical Probe, CsI, High Sensitivity....................... 5250-0120
EuroProbe3 Surgical Probe, Endoscopic....................................... 5250-0121
OPTIONAL ACCESSORIES
Source Holder................................................................................... 5250-0122
Co-57 0.370 MBq -(10uCi) Rod......................................................0975-137T 511
Collimator, CsI .......................................................................... 5250-0125
Collimator, CdTe.............................................................................. 5250-0112
Collimator, CsI ................................................................................. 5250-0113
EuroProbe3 Surgical Probe, CdTe, Bent....................................... 5250-0116
EuroProbe3 Bluetooth 511 Collimator .......................................... 5250-0153
Surgical Probe Sheath ..................................................................... 5250-0094
EuroProbe3 Source Holder............................................................. 5230-2124
EuroProbe3 footswitch, standard 2m cable .................................. 5250-0115
EuroProbe3 footswitch, 5m cable................................................... 5250-0172
EUROPROBE3 OPTIONAL COMPONENTS
BLUETOOTH PROBE SPECIFICATIONS
• Detector: Detector Crystal: CsI 10mm long x 5mm diameter coupled to a 25mm² silicon photodiode
• Energy Range: 100 keV to 1 MeV (Tc-99m, In-111, I-131, F18)
• Probe Dimensions: Probe Length 261 mm Diameter 11 mm
• Collimation: The collimator is integrated in the probe
• Weight: 200g
• Protection IP: IP64
• Probe Battery: Pile Li-SOCL² 1/2AA 3,6V SAFT LS 14250
• Wireless Connection: Module Bluetooth ID: ES9LMX9838
• Decontamination: By Immersion, ONLY AFTER THE BATTERY HAS BEEN REMOVED
CDTE LOW ENERGY PROBE SPECIFICATIONS
• Semiconductor crystal either CdTe or CdZnTe: 5x5x3mm3 CdTe or CdZnTe (Cadmium Telluride)
• Energy Range: 20 to 300 keV (can also be used from 170 to 364 keV, but the detection efficiency within this range is better with the CsI probe)
• Detector efficiency for I-125 (27-35 keV): > 80%
• Detector efficiency for Tc- 99m (140 keV): > 60%
• Storage Temperature: +1°C to +40°C
• Operating Temperature Range: +15°C to +40°C
• Final Size of the Probe: Length = 175mm, detection head diameter = 11 mm. Slightly angled to permit easier access to certain tissues. The collimator is an integral part of the probe.
• Weight: 5 oz. (140 g) (excluding cable)
• Maximum ambient humidity for good operation: 80% at 40°C
CSI HIGHER ENERGY PROBE SPECIFICATIONS
• Scintillator: Diameter = 5 mm, Length = 10mm CsI (T1) crystal coupled to a 25 mm2
• Silicon Photodiode Energy Range: 100 keV to 1 MeV
• Detector Efficiency for Tc-99m (140keV): > 80%
• Detector Efficiency for In-111 (245 keV): > 70%
• Detector Efficiency for I-131 (364 keV): > 45%
• Storage Temperature: +1°C to +50°C
• Operating Temperature Range: +15°C to +50°C
• Final Size of the Probe: Length = 7.2" (184mm), detection head diameter = .6" (16 mm). Slightly angled to permit easier access certain tissues. The collimator is an integral part of the probe.
• Weight: 6.2 oz. (175 g) (excluding table)
• Maximum ambient humidity for good operation: 80% at 40°C
