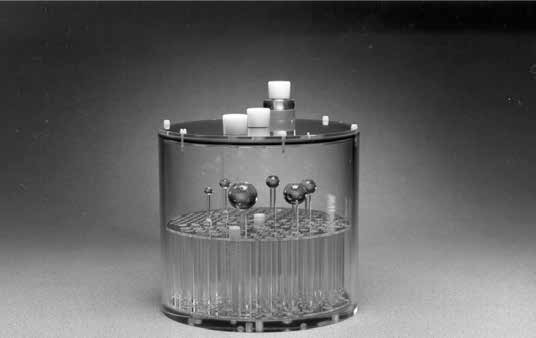

Deluxe ECT phantom without protruding flange.

MAIN APPLICATIONS

• For use with high spatial resolution SPECT and PET systems
• System performance evaluation (collimator, artifacts, calibration, reconstruction parameters)
• Acceptance testing
• Routine quality assurance and control
• Evaluation of center-of-rotation error
• Evaluation of non-uniformity artifact
• Evaluation of changes of radius-of-rotation on spatial resolution
• Evaluation of reconstruction filters on spatial resolution
• Evaluation of attenuation and scatter compensation
• Research
• ACR recommended phantom

SPECIFICATIONS OF CYLINDER

• Cylinder inside diameter: 20.4 cm
• Cylinder inside height: 18.6 cm
• Cylinder wall thickness: 6.4 mm

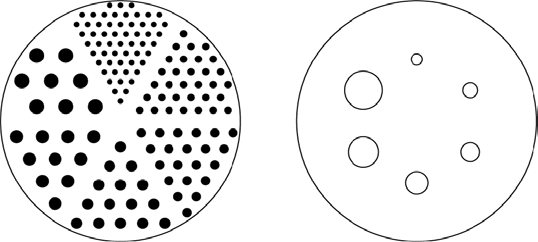

SPECIFICATIONS OF INSERT AND SPHERES

• Rod diameters: 4.8, 6.4, 7.9, 9.5, 11.1 and 12.7 mm
• Height of rods: 8.8 cm
• Solid sphere diameter: 9.5, 12.7, 15.9, 19.1, 25.4 and 31.8 mm
• Height of center of spheres from base plate: 12.7 cm

ITEM NUMBERS

Flangeless Deluxe Jaszczak Phantom™ ........................................ 5250-0169
