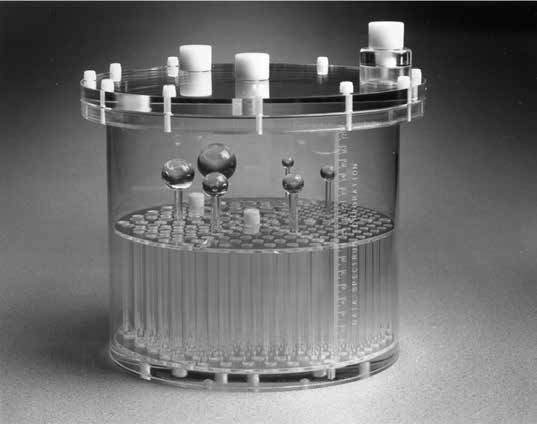

ECT phantoms with protruding flanged top and 3.2 mm cylinder wall thickness.

MAIN APPLICATIONS

• For use with SPECT and PET systems
• System performance evaluation (collimator, artifacts, calibration, reconstruction parameters)
• Acceptance testing
• Routine quality, assurance and control
• Evaluation of center-of-rotation error
• Evaluation of non-uniformity artifact
• Evaluation of changes of radius-of-rotation on spatial resolution

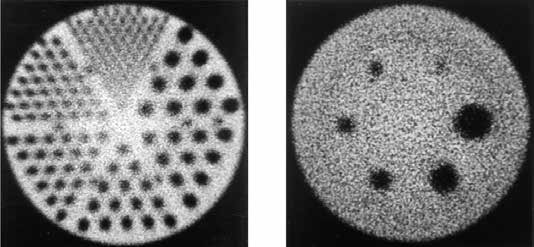

• Evaluation of reconstruction filters on spatial resolution
• Evaluation of attenuation and scatter compensation
• Research

SPECIFICATIONS OF CYLINDER

• All clear material: PMMA
• Cylinder inside diameter: 21.6 cm
• Cylinder inside height: 18.6 cm
• Cylinder wall thickness: 3.2 mm

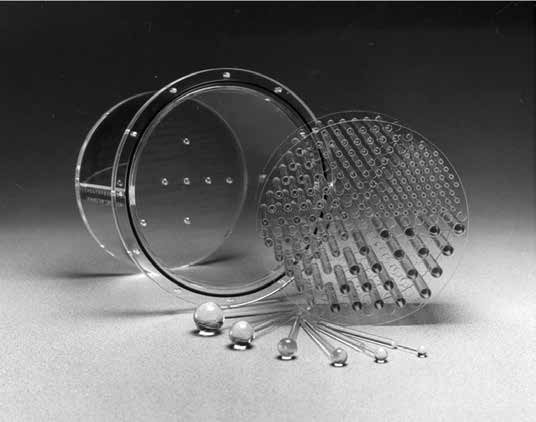

SPECIFICATIONS OF INSERT

• All clear material: PMMA
• Rod diameters: Vary with insert
• Height of rods: 8.8 cm
• Solid sphere diameters: Vary with inert
• Height of center of spheres from base plate: 12.7 cm

ITEM NUMBERS

Ultra Deluxe Jaszczak Phantom™................................................. 5250-0168

For use with ultra-high spatial resolution SPECT and PET systems.

Rod diameters: 3.2, 4.8, 6.4, 7.9, 9.5 and 11.1 mm

Solid sphere diameters: 9.5, 12.7, 15.9, 19.1, 25.4, and 31.8 mm

Deluxe Jaszczak Phantom™........................................................... 5250-0167

For use with high to very high spatial resolution SPECT and PET systems.

Rod diameters: 4.8, 6.4, 7.9, 9.5, 11.1 and 12.7 mm

Solid sphere diameters: 9.5, 12.7, 15.9, 25.4, and 31.8 mm

Standard Jaszczak Phantom™....................................................... 5250-0157

For use with medium to high spatial resolution SPECT and PET systems.

Rod diameters: 6.4, 7.9, 9.5, 11.1, 12.7 and 19.1 mm

Solid sphere diameters: 12.7, 15.9, 19.1, 25.4, 31.8, and 38 mm
