FEATURES

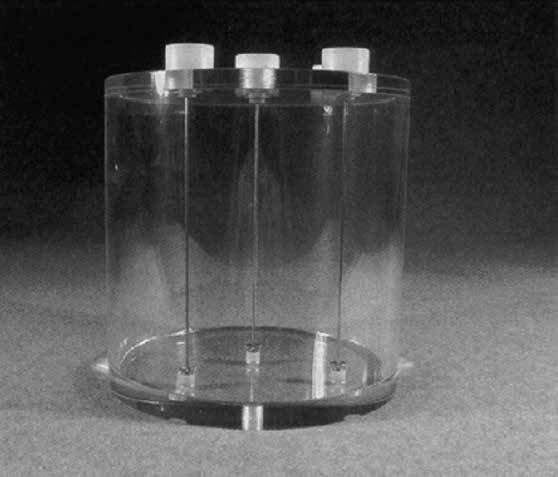

• The NEMA SPECT Triple Line Source Phantom is designed in accordance with the recommendations by the National Electrical manufacturers Association (NEMA) to standardize the measurement of reconstructed spatial resolution of SPECT*
• Material clear is PMMA

APPLICATIONS

• Acceptance testing with NEMA standard
• Center-of-rotation error evaluation
• Evaluation of changes of radius-of-rotation on spatial resolution
• Quantitative evaluation of reconstruction filters and scatter compensation methods
• Research

ITEM MEASUREMENTS

• Cylinder Outside Diameter: 22.2 cm
• Cylinder Inside Diameter: 20.2 cm
• Cylinder Outside Height: 23.8 cm
• Cylinder Inside Height: 20.0 cm
• Diameter of Line Sources: ~ 1 mm
• Spacing of Line Sources: 7.5 cm
• Useful Height of Line Sources: 18.4 cm

* Performance Measurements of Scintillation Cameras, NEMA Standards Publication No. NU 1, National Electrical Manufacturers Association (NEMA), Washington, D.C., 2007

ITEM NUMBERS

NEMA SPECT Triple Line Source Phantom................................ 5250-0179
