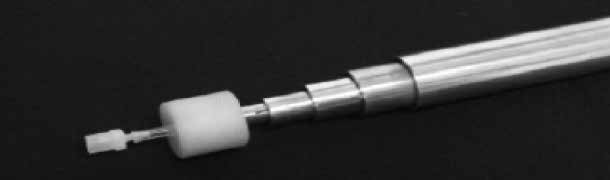

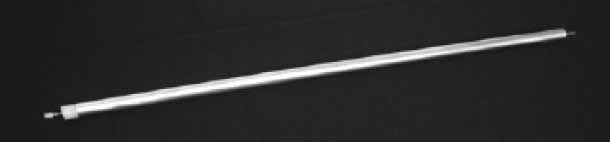

6 Concentric aluminum tubes used to detect camera sensitivity in PET

ITEM MEASUREMENTS

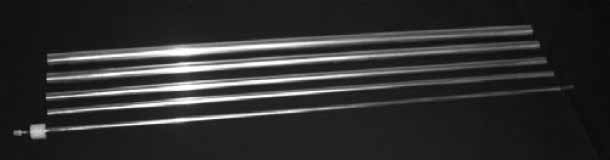

• 5 internally stacked aluminum tubes all 700 mm in length
• 1st Tube:

• Inside Diameter: 3.9 mm
• Outside Diameter: 6.4 mm

• 2nd Tube:

• Inside Diameter: 7.0 mm
• Outside Diameter: 9.5 mm

• 3rd Tube:

• Inside Diameter: 10.2 mm
• Outside Diameter: 12.7

• 4th Tube:

• Inside Diameter: 13.4 mm
• Outside Diameter: 15.9

• 5th Tube:

• Inside Diameter: 16.6 mm
• Outside Diameter: 19.1

• Innermost tube (fillable polyethylene tubing):

• Inside Diameter: 1 mm
• Outside Diameter: 3 mm

* Performance Measurements of Scintillation Cameras, NEMA Standards Publication No. NU2, National Electrical Manufacturers Association (NEMA), Washington, D.C., 2001

ITEM NUMBER

NEMA PET Sensitivity Phantom™ ............................................... 5250-0165
