Maximum protection for safe handling of 511 KeV nuclides.

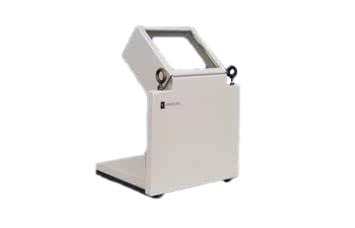

The newly designed 511 "L" Block Shield is placed in front of the Drawing Station and used to provide a protected work area for safe handling of 511 keV nuclides. The front wall and the base of the unit are constructed of steel with built-in lead shielding. A 4" thick lead glass window offers maximum protection and an unrestricted viewing area. In addition, the lead glass is protected from scratches and chips by a sheet of window glass.

FEATURES

• The fixed angle design of the lead glass allows easier viewing.
• Contains two sheets of 1/4" window glass to protect lead glass from scratching and chips (Industry exclusive).
• Lead shielding thickness- 1.0” (2.54 cm)

ITEM MEASUREMENTS

• Dimensions: 20 1/4" h x 14" w x 14" d (51 x 35.5 x 35.5 cm)
• Lead Glass Density: 8” x 8” x 4” (20.32 x 20.32 x 10.16cm) 5.2 g/cc
• Weight: 195 lbs. (89 kg)

ITEM NUMBERS

PET L-Block Shield w/4" glass....................................................... 0665-2014

OPTIONAL BRICK KITS FOR 511 "L" BLOCK

Unpainted Chevron Brick Kit ........................................................ 5530-1029

12" H x 28" W x 16" D x 2" thick (41 x 71 x 30 x 5 cm)

Painted Chevron Brick Kit ............................................................. 5530-1030

12" H x 28" W x 16" D x 2" thick (41 x 71 x 30 x 5 cm)

Unpainted Chevron Brick Kit ........................................................ 5530-1035

12" H x 28" W x 16" D x 2 3/8" thick (41 x 71 x 30 x 6 cm)

Painted Chevron Brick Kit ............................................................. 5530-1036

12" H x 28" W x 16" D x 2 3/8" thick (41 x 71 x 30 x 6 cm)
