CAPINTEC “L” BENCH SHIELDS

Capintec “L” blocks provide effective radiation protection without a larger cost

Capintec has studied the working area in the Hot Lab and has designed an “L” shield that provides greater protection without a bigger price tag. The lead glass is 4.8 gm/c³ while not sacrificing optical quality. Capintec “L” Shields are provided with 1/4" lead glass, plus 1/4"clear glass to protect the lead glass from scratching during use. Additional thicknesses of glass are available, if required. The 1/4" lead shield is designed with a steel frame and base.

FEATURES

• 4.8 g/cm3 density lead
• Industry exclusive 1/4" clear glass to protect lead glass from scratching.
• Total Frontal shielding for safety (no plastic or particle board and no air gaps).
• The shields are painted with a high gloss epoxy paint, for easy cleaning.

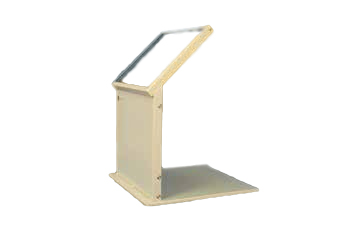

The Standard “L” shield is the favorite as a drawing station and as a storage shield for unit doses with easy access. Side shields or lead brick may be used to form walls when the Standard shield is used to store higher activity or for additional shielding. Capintec offers shields with lead greater than the standard 1/2" when working with afterloaders or PET products. (see PET section for more info.)

SPECIFICATIONS

• .25" lead glass.
• .5" lead shielding.
• Optional Side Shield .25"
• Additional .25" Lead Glass
• Additional .25" plain glass

ITEM MEASUREMENTS

• Dimensions: 26" h x 18.5" w x 17.75" d (66 x 47 x 45 cm)
• Weight: 100 lbs. (45.35 kg)

ITEM NUMBERS

Standard “L” Shield........................................................................ 5130-2090

Additional Lead Glass for Standard.............................................. 1000-0211

Additional Plain Glass for Standard.............................................. 1000-0209

Side Shields for Standard “L” Shield ............................................ 7310-1305
