CAPINTEC “L” BENCH SHIELDS

Capintec “L” blocks provide effective radiation protection without a larger cost

Capintec has studied the working area in the Hot Lab and has designed an “L” shield that provides greater protection without a bigger price tag. The lead glass is 4.8 gm/c³ while not sacrificing optical quality. Capintec “L” Shields are provided with 1/4" lead glass, plus 1/4"clear glass to protect the lead glass from scratching during use. Additional thicknesses of glass are available, if required. The 1/4" lead shield is designed with a steel frame and base.

FEATURES

• 4.8 g/cm3 density lead
• Industry exclusive 1/4" clear glass to protect lead glass from scratching.
• Total Frontal shielding for safety (no plastic or particle board and no air gaps).
• The shields are painted with a high gloss epoxy paint, for easy cleaning.

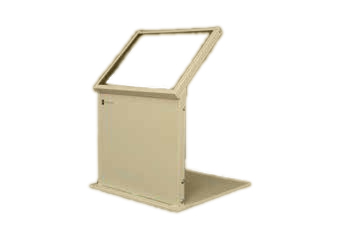

The Mini “L” shield offers the greatest in flexibility of positioning. This smaller unit is perfect for those very small work areas where additional protection is required for temporary storage of syringes or vials. Excellent for remote stations where syringes must be filled or as an additional work station.

SPECIFICATIONS

• .25" Lead Glass
• .5" Lead Shielding
• Additional .25” Lead Glass
• Additional .25” Plain Glass
• Optional Side Shielding .25"

ITEM MEASUREMENTS

• Dimensions: 16.75" h x 12" w x 12" d (42.5 x 30.5 x 30.5 cm)
• Weight: 35 lbs. (15.87 kg)

ITEM NUMBERS

Mini “L” Shield................................................................................ 5130-2086

OPTIONAL ACCESSORIES

Additional Lead Glass for Mini...................................................... 1000-0207

Additional Plain Glass for Mini ..................................................... 1000-0208

Side Shields for Mini “L” Shield.................................................... 7310-1302
