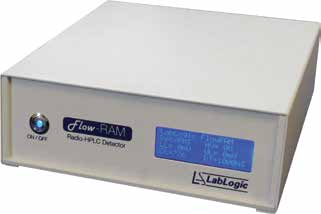

The Flow-RAM is an innovative and low cost radio HPLC detector that addresses PET and SPECT production and research requirements. The instrument is compatible with all makes of HPLC systems and with the availability of the specifically designed range of detectors, the Flow-RAM is ideally suited for PET and Nuclear Medicine applications.
FEATURES
• GLP/GMP compliance as standard
• A wide range of detectors for all Nuclear Medicine and PET Radionuclides
• Bespoke lead shielding to limit the background interference
• Intelligent and informative front end display
• Flexibility; two detectors can be connected to the same instrument simultaneously AND independently of one another to provide a two in one instrument
• USB connection for power supply, instrument control and data collection, rather than the now outdated and slow serial output of older systems
• Flow-RAM is the first radiodetector of its type to offer stand alone control of data collectionthrough a pocket digital assistant via a Bluetooth™ wireless link.
ITEM NUMBERS
Flow-RAM radio-HPLC system..................................................... 0602-0084
Single channel with inputs for either PMT or PIN Diode detectors. Includes Laura full version software. Requires detector and PC
Flow-RAM radio-HPLC system..................................................... 0602-0085
Single channel with inputs for either PMT or PIN Diode detectors. Includes Laura Academia software. Requires detector and PC
Flow-RAM radio-HPLC system..................................................... 0602-0086
Single channel with inputs for either PMT or PIN Diode detectors. Includes Basic Control Software. Requires detector, chromatography software and PC
Flow-RAM radio-HPLC system..................................................... 0602-0087
Dual channel inputs available simultaneously and independently for both PMT and/or PIN Diode detectors. Includes Laura full version software X 2. Requires detectors and PC
Flow-RAM radio-HPLC system..................................................... 0602-0088
Dual channel inputs available simultaneously and independently for both PMT and/or PIN Diode detectors. Includes Laura Academia software X 2. Requires detectors and PC
Flow-RAM radio-HPLC system..................................................... 0602-0089
Dual channel inputs available simultaneously and independently for both PMT and/or PIN Diode detectors. Includes Basic Control software. Requires detectors, chromatography software and PC
Hand held wireless preloaded with Laura Mobile (Flow-RAM)............ 0602-0090
1 Year Instrument Technical Assistance ........................................ 0602-0091
1 Year Instrument Service Contract .............................................. 0602-0092
DETECTORS FOR FLOW-RAM™ RADIO-HPLC
PMT - 1” NaI detector suitable for detection of high-energy gamma radionuclides for HPLC and TLC (not suitable for radio-TLC of PET isotopes)............................................................................................. 0602-0093
Includes HV/signal C cable. (requires shield and flow cell)
PMT - 2” NaI detector for high energy gammas.......................... 0602-0094
Includes HV/signal C cable. (requires shield and flow cell)
PMT - Plastic Scintillator detector suitable for detection of PET isotopes for TLC and high energy beta radionuclides for HPLC ................... 0602-0095
Includes HV/signal C cable
PMT - NaI detector for 125I, and other low energy gammas ..... 0602-0096
Includes HV/signal C cable. (requires shield and flow cell)
Well Type PMT - NaI detector with 4Pi counting geometry. Well: 1.7 cm Dia x 3.9 cm L Detector: 4.5 x 5.1 cm. ................................................. 0602-0097
Requires lead shield PJ-FXX-15
Miniature PIN Diode radio-HPLC detector for high activity monitoring of gammas up to 1 Curie ..................................................................... 0602-0098
Miniature CsI/PIN Diode radio-HPLC detector for high energy gammas.................................. 0602-0099
SHIELDS FOR RADIO-HPLC
Five part 1’’ lead shield for PMT detectors................................... 0602-0100
Ideal for low-energy isotopes. Includes flow cell
Five part 2’’ lead shield for PMT detectors................................... 0602-0101
Ideal for QC of PET/SPECT products in areas with high background. Includes flow cell
Five part 3’’ lead shield for PMT detectors................................... 0602-0102
Ideal for QC of PET/SPECT products in areas with high background. Includes flow cell
Lead shielded holder and flow cell for PIN Diode detectors....... 0602-0103
Six part 2’’ lead shield for 2” NaI/PMT detectors/PN-FXX-04........ 0602-0104
Ideal for QC of PET/SPECT products in areas with high background. Includes flow cell
Six part 2” lead shield for the 2’’ NaI/PMT well type detector PN-FXX-14 .......................... 0602-0105
Sleeve insert for lead shield (PJ-FXX-11) that is suitable for PIN Diode detectors.................... 0602-0106
FLOW-RAM™ VALIDATION
Single output Flow-RAM hardware IQ/OQ ................................. 0602-0107
Dual output Flow-RAM hardware IQ/OQ.................................... 0602-0108
