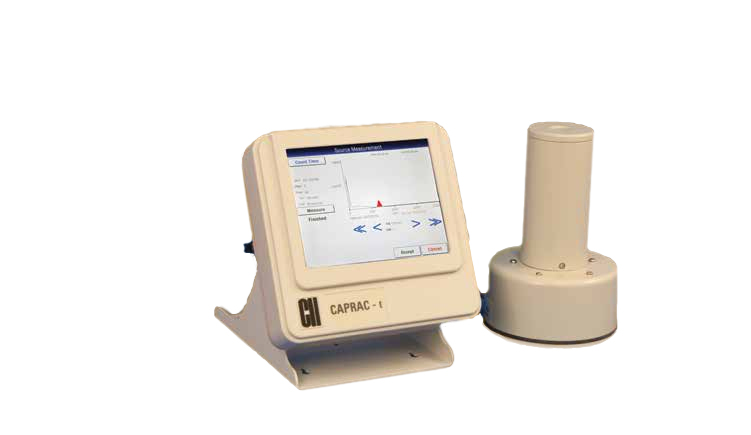

Don't worry about meeting the regulations in 10 CFR Part 35.315 (200 dpm requirements for unrestricted areas and iodine contamination). Capintec's CAPRAC-t Wipe-Test Counter handles all of them.
Measure for measure, no other well counter offers the speed, accuracy and complete range of built-in features provided by the compact CAPRAC-t. It performs a wipe test in just 6 seconds (for 1 nCi) and detects extremely low levels of activity with the accuracy only a NaI drilled-well detector can provide.
The CAPRAC-t can also serve as a single-well gamma counter in departments that do not need multi-sample changers. User-defined protocols, trigger levels, and counting times are a "snap". A 256-channel pulse-height analyzer permits built-in gamma spectroscopy. Definable conversion factors for specific radionuclides allow the CAPRAC-t to calculate results in cpm, dpm, nCi, cps, dps, or kBq. The CAPRAC-t also displays photon-energy histograms.
The CAPRAC-t is engineered and built for years of consistent, reliable performance and is Curie or Becquerel selectable. The unit has automatic background subtraction and self-diagnosis programs for systems testing with optimized signal-to-noise ratio. It includes a lead outer shield (1.3 cm thick) with optional auxiliary shield available.
 |
 |
|

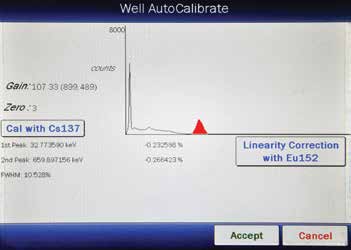

Well Autocalibrate Calibration with Cs137 sets the voltage gain and establishes the FWHM for the detector using both the 32.5 kev and 662 kev peaks. Linearity correction with Eu152 applies correction factors for the non-linear response of NaI crystals to different kev’s detected by the crystal. This results in accurately centered peak detection for different nuclides. |

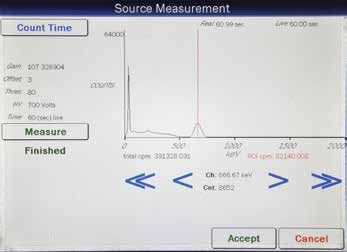

Sample Measurement Isotope peaks found in sample measurements are compared to data in the isotope library to assist the user in the identification of the specific nuclide. |
FEATURES
• 8” SVGA touch screen color display
• 256 channel MCA with detailed spectrum for identification analysis
• NaI drilled-well crystal detector
• Automatic Energy Calibration, Constancy Check, and Background Subtraction
• Automated well QC including chi-square and MDA
• Manual and Automatic ROI
• Sets user definable protocols for wipes
• Print outs of all data for permanent records with the optional printer
• Direct readouts with spectrum display are in cpm, dpm, Curies and Bequerels
• Meets all state and NRC wipe test requirements
• USB and RS232 communication ports for PC and printer
• Compatible with nuclear medicine information management systems via USB
• Lab tests include Schilling, Plasma and RBC volume
• Built-in database for test and wipe results as well as QC
SPECIFICATIONS
• Performance: Type: 1.5” Sodium Iodine (NaI) drilled-well crystal; 256 Channel MCA manual and automatic ROI; Trigger Levels: User definable; Automated Calibration and Background Subtraction; QC Tests: Reproducibility, Chi-Square, MDA; Counting Rate: 10,000 cps
• Display Screen: Type: 8” VGA-LCD color touch screen; Bq/Ci Reading: User selectable; Activity Display: Selected radionuclide, efficiency, measured activity, and display units; Count Rate Values for both wipe and lab results
• Printer: RS-232 or USB Ports for compatible non-host based printers
• PC Port: Interface: RS-232 and USB
• Power Requirement: 100-240 VAC (50/60 Hz) 25W
• Test: Diagnostic: Full test of program and system memories
• Cable: Printer (Optional): 6' (1.8m); Power: 6' (1.8m)
CONSOLE MEASUREMENTS
• Dimensions: 9.5" h x 9.0" w x 10.5" l (42 x 23 x 22 cm)
• Weight: 7.5 lbs. (.4kg)
WELL COUNTER MEASUREMENTS
• Well Counter Dimensions: 9.28" h x 6" d (23.8 x 15.2 cm)
• Weight: 15.2 lbs. (6.9 kg)
• Crystal Dimensions: 1.5" x 1.75" (3.8 x 4.4 cm)
• Shielding: .5" (1.3 cm) lead
• Well Diameter: .67" (1.7 cm)
• Well Depth: 1.5" (3.8 cm)
• Cable Length: 9' (2.7 m)
ITEM NUMBERS
CAPRAC®-t Wipe Test/Well Counter........................................... 5430-3136
OPTIONAL ACCESSORIES
Auxiliary Shield................................................................................ 5420-2072
Epson Roll Printer ........................................................................... 5430-0058
Protective Screen Covers.............................................................. 7900-0352
Cs-137 Road Source.........................................................................0975-137R
Eu-152 Rod Source ..........................................................................0975-152R
Test Tubes ...................................................................................... 0670-0016
Well Auxiliary Shield.................................................................... 5420-2141
Roll Paper ......................................................................................... 9282-0009
Well Liners..................................................................................... 5420-0121
