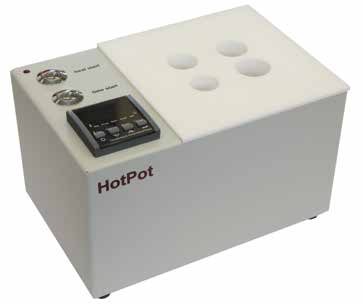

Shielded Dry Heating Block- Ideal for Tc-99 Kit Preparation

FEATURES

• Eliminates splashes from boiling water
• Digital temperature control
• Count down timer with automatic shut off
• 4mm lead shielding on all sides
• Heater range up to 160°C
• Durable powder coated steel housing
• Protective Teflon cover over heating element
• Four heating cavities to accommodate most common kit vials
• Custom size cavities available upon request

SPECIFICATIONS

• Temperature Setting Range-5°-160°C (41°-320°)
• Resolution-1°C (33.8°F)
• Accuracy-+%5
• Operating Temperature-5°-40°C (41°-104°F)
• Storage Temperature-0°-50°C (0°-122°F)
• Power- 120V/60Hz or 220-240V/50Hz
• Weight-6.5kg (14.3 lbs.)

ITEM MEASUREMENTS

• 209x140x129mm (8.2"x5.5"x5.1")
• Shielding- 4mm (.16") lead
• Kit Vial Well Dimensions-
• Hole 1- 25.5 mm x 43 mm deep (1" x 1.7")
• Hole 2- 22.6 mm dia. x 41 mm deep (.9" x 1.6") (+an optional disk for 10 mm height adjustment)
• Hole 3- 24.2 mm dia. x 27 mm deep (.95" x 1.1")
• Hole 4- 24.2 mm dia. x 27 mm deep (.95" x 1.1")

ITEM NUMBERS

HotPot (110V)................................................................................... 0651-0024

HotPot (220V)................................................................................... 0651-0023
