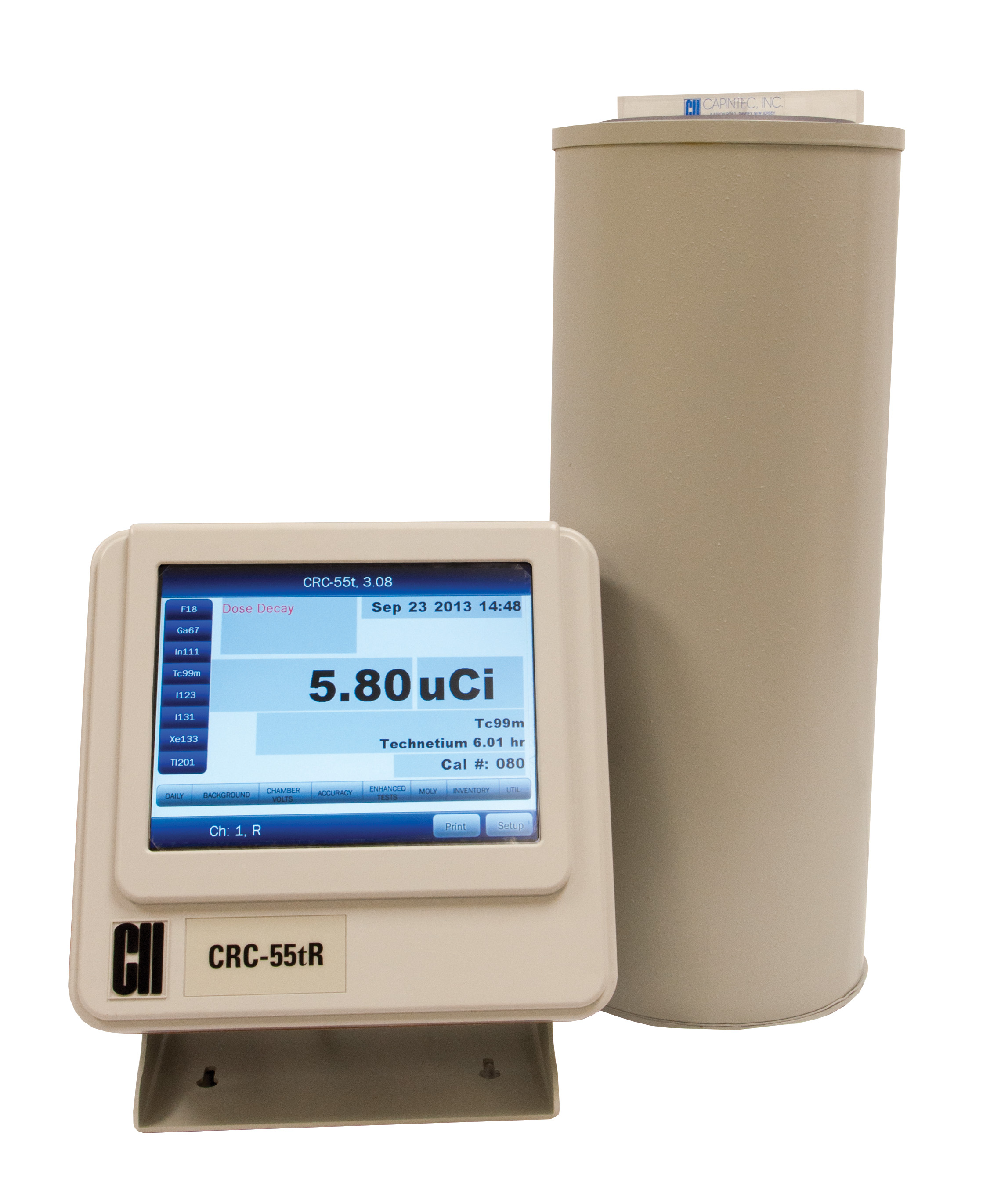

The new Capintec CRC®-55tR provides the quality and versatility that you’ve come to expect from Capintec. Using the menu-driven, color touch screen interface, the CRC®55tR’s performance and reliability has been designed to meet the demanding needs for speed and accuracy in the preparation and measurement of doses in any laboratory environment.

The enhanced 55t software supports dual chamber technology with an innovative functional design that includes a large, easy-to-read display that specifies Nuclide Name, Number, Activity, Unit of Measure and Calibration Number.

Entering data through the custom touch screen interface is fast and includes 28 programmable keys. The user can select from 80 nuclides by simply selecting the nuclide symbol on the touch screen interface.

Additional capabilities include storage of reference sources in memory that automatically decay corrects for today’s time and date. Automated quality control tests and self-diagnostics are built-in with automatic zero and background subtraction making the CRC®-55tR exceptionally easy to use. An optional printer enables the CRC®-55t to print full size records and patient tickets with peel off labels for vial and syringe identification.

Se habla español? New to the 55t family is bilingual English/ Spanish software!

Features including USB/PC Communications, printer capabilities, USB flash drive software for upgrades, plug and play chamber and expanded remote capabilities make the CRC®-55tR an integral tool in improving your department’s efficiency.

Count on Capintec for excellence in energy measurement and unsurpassed customer service, training and support.

FEATURES

• 8” color VGA touch screen display
• Single or optional second plug and play chamber capability
• Chamber and remote can be placed 100 feet from the readout unit
• Bilingual (English/Spanish) Software
• Selection of Nuclide and Daily Test can be done with the remote
• On screen display of Nuclide Name, Number, Activity, Unit of Measure and Calibration Number
• Large character, high visibility display
• Over 80 Nuclides with half-lives in memory
• Full alpha numeric touchpad
• Built-in dose calibration, quality control and self diagnostics
• Automated QC including constancy and linearity programs
• Compatible with Nuclear Medicine Management Systems via USB
• Optional printer for full size NRC records and patient labels for syringes and vials.

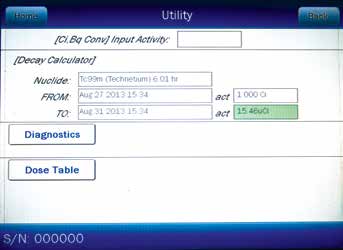

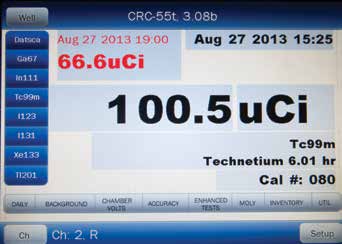

Dose Decay Screen • Any selected isotope can be decay-corrected for specific time/date  • Large, easy to read decay-corrected data displayed in RED	Utilities Screen • Rapid conversion of Ci/Bq  • Decay calculator for dose calculations  • Diagnostics- tests the integrity of the dose calibrator  • Dose Table- defines specific volumes from a measured sample for user-defined doses at a future time

• Optional intelligent programmable remote display indicating Nuclide, Activity and Unit of Measure, and perform daily test

• USB/PC Communications
• Software upgrade via USB or Flash Drive
• USB printer capability
• Automated Geometry and Linearity Testing
• Capable of dual chambers
• Supports exchange of chambers with the CRC®-55tPET dose calibrator
• Chamber energy range: 15 keV to 3 MeV

SPECIFICATIONS

• Ionization Chamber: Type: Thin wall, deep well, high pressure; Fill Gas: 12 atm Ultra Pure Argon
• Measurement Range: Type: Auto Ranging; Activity: 250 GBq (6 Ci), max.; Resolution: .001 MBq (.01 µCi), max.
• Display Screen: Type: 8” VGA LCD color touch screen display; Format: Direct reading in Bq or Ci; Bq/Ci Reading: User selectable or fixed; Values Displayed: Nuclide name (Atomic symbol, Mass number), calibration number
• Electrometer: Accuracy: Better than ± 2%; Linearity: Within ± 2%; Response Time: Within 2 sec., 4 to 16 sec. for very low activity samples
• Tests: Diagnostics: Full test of program, system memories; Daily: Auto Zero, Auto Background Adjust, Data Check, Accuracy and Constancy, Voltage Test; Enhanced: Linearity, Geometry, Strip QC
• Nuclear Data: Nuclide Keys: 28 programmable keys; System Memory: Over 80 nuclides (cal number and half-life)
• Standard Source Data: System Memory: Co-57, Co-60, Ba-133, Cs-137 Standard Sources
• Repeatability of Measurement: Repeatability: Within ± 1% within 24 hours, during which time the calibrator is on all the time.
• Molybdenum-99 Assay: Methods: Canister or CAPMAC; Measured Values: Mo-99 elution, Tc-99m, Tc-99m/Mo-99 Ratio
• PC Port: Interface: RS-232 & USB; Compatibility: Standard Nuclear Medicine Management Systems
• Printer (Optional): Type: Epson Roll, Epson Slip or Okidata full size dot matrix or USB PCL compliant non-host based; Printing Options: Full size test report or measured results on a ticket
• Power Requirements: 100-240 VAC (50/60Hz) 90 MA
• Cables: Power: 1.8m (6ft)- Longer cables are available. Consult factory; Printer: 1.8m (6ft) 0413

ITEM MEASUREMENTS

• Console Dimensions: 9.5" h x 9.0" w x 10.5" d (42 x 23 x 27 cm)
• Console Weight: 7.5 lbs. (3.4 kg)
• Chamber Dimensions: 17.25" h x 6.76" d (43.8 x 17.2 cm)
• Chamber Weight: 30 lbs. (13.6 kg)
• Chamber Well Diameter: 2.4" (6.1 cm)
• Chamber Well Depth: 10.0" (25.4 cm)
• Chamber Cable Length: 12' (3.7 m)- Longer cables are available. Consult factory

 ITEM NUMBERS

CRC®-55tR Dose Calibrator.......................................................... 5130-3234

Additional R Chamber .................................................................... 5130-2210

OPTIONAL ACCESSORIES

Epson Roll Printer ........................................................................... 5430-0058

Epson Ticket Printer ....................................................................... 5430-0100

CRP-200 Dose Tickets & Labels .................................................... 7120-1199

CAP-MAC®-S Molly Assay Canister for Syringes ...................... 5130-2046

Molly Assay Canister....................................................................... 5130-0006

Chamber Well Insert ....................................................................... 7300-2004

Environmental Shield ...................................................................... 7300-2450

Dipper................................................................................................ 7300-2005
