Capintec Innovation...Network Ready...Remote Connectivity

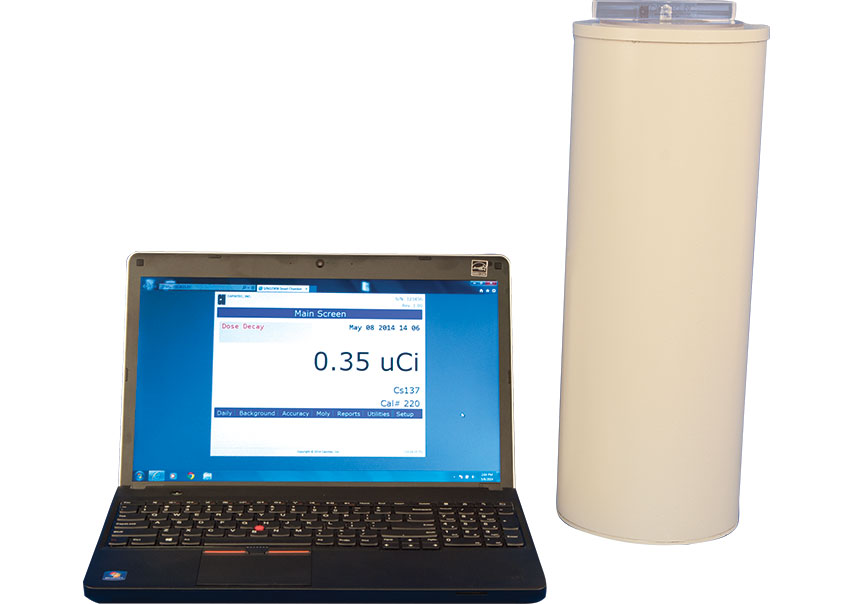

The new Capintec CRC®-PC Smart Chamber combines Capintec’s well-known and highly reliable measurement chamber with an innovative Web based user interface to meet today’s business requirements. Remote connectivity and network ready interface set the Smart Chamber apart as the most advanced in dose calibration.

Available in two fill pressures. For unit dose hot labs, the HL model provides excellent low activity sensitivity while covering a wide clinical range of activities. For radiopharmacies, the lower fill pressure of the pharmacy RPh model extends the activity range to accommodate the higher activity yields of today’s generators and cyclotron sites.

The innovative functional design of the PC Smart Chamber provides a small footprint, and direct interface to Nuclear Medicine Management Systems with remote viewing capability.

Additional features include Ethernet software upgrades, plug and play chamber, user adjustable threshold for faster response.

Count on Capintec for excellence in energy measurement, and for our unsurpassed customer service and support!

FEATURES

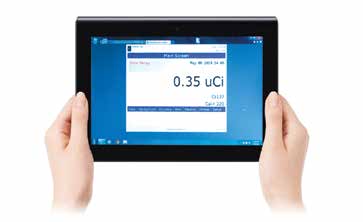

• Connects to network infrastructure so that display can be viewed from any network PC (remote viewing)

• Direct interface to Nuclear Medicine Management Systems-no readout required

• Ethernet Communications

• Automated QC

• Software upgrade via Ethernet interface

• Built-in database to store QC, Moly and User Log

• Powered over Ethernet or USB port

• User adjustable threshold for faster response times

• Small footprint

• User Manual viewable on PC

SPECIFICATIONS

• Ionization Chamber: Type: Thin wall, deep well, sealed and pressurized; Fill Gas: Ultra-Pure Argon

• Electrometer: Accuracy: Better than ± 2%; Linearity: Within ± 2%; Response Time: Within 2 sec., 4 to 16 sec. for very low activity samples

• Repeatability of Measurement: Repeatability: Within ± 1% within 24 hours, during which time the calibrator is on all the time.

• Tests: Diagnostics: Full test of program, system memories; Daily: Auto Zero, Auto Background Adjust, Data Check, Accuracy and Constancy, Voltage Test

• Nuclear Data: 30 User Nuclides; Over 80 built-in nuclides (cal number and half-life)

• Measurement Range: Type: Auto Ranging; HL (hot Lab) 6 Ci Tc-99m, 2 Ci F-18; RPh (pharmacy) 72 CI Tc-99m, 20 Ci F-18

• Standard Source Data: System Memory: Co-57, Co-60, Ba-133, Cs-137, Na22 Standard Sources

• Molybdenum-99 Assay: Methods: Canisters or CAPMAC; Measured Values: Mo-99 elution, Tc-99m, Tc-99m/Mo-99 Ratio

• PC Port: Interface: Ethernet; Compatibility: Standard Nuclear Medicine Management Systems

• PC Power Requirements: 100-240 VAC (50/60Hz) 3A max

• Chamber Power: USB: 5Vdc, 0.5A; Power over Ethernet (PoE): 48Vdc, 0.35A

ITEM MEASUREMENTS

• Dimensions: 18.1" h x 6.76" d (45.8 x 17.2 cm)

• Weight: 39.3 lbs. (17.8 kg)

• Well Diameter: 2.4" (6.1 cm)

• Well Depth: 10.0" (25.4 cm) ITEM NUMBERS

CRC®-PC Smart Chamber HL System ...................................... 5130-30255

CRC®-PC Smart Chamber RPh System .................................... 5130-30256

CRC®-PC Smart Chamber HL Chamber .................................. 5130-20253

CRC®-PC Smart Chamber RPh Chamber ................................ 5130-20254

OPTIONAL ACCESSORIES

Molly Assay Canister....................................................................... 5130-0006

Environmental Shield ...................................................................... 7300-2450

Chamber Well Insert ....................................................................... 7300-2004

CAP-MAC-S Molly Assay Canister for Syringes ......................... 5130-2046

Dipper................................................................................................ 7300-2005

NUCLEAR MEDICINE MANAGEMENT SOFTWARE
